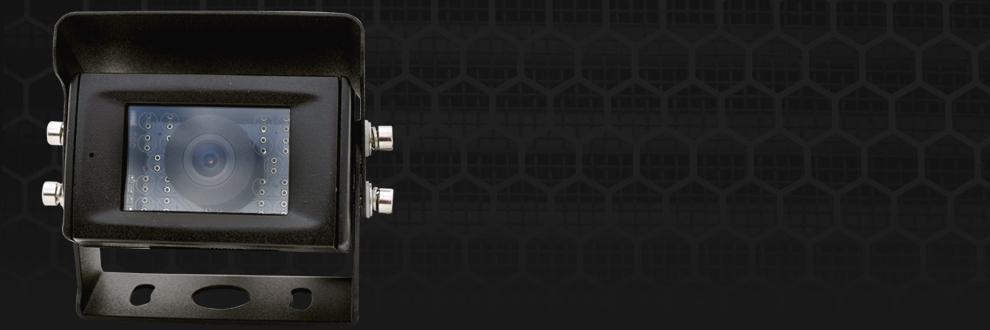

TMV-018D-F

  • Better picture's clarity, color contrasting and sharpness than CMOS camera
  • Hard metal cased
  • Waterproof and Mud proof
  • IP69 rating
  • ​Built-in Microphone for audio monitoring
  • ​Regular image switching For DVR system front vision recording

LED Camera

  • Image Sensor:  1/4" SHARP CCD
  • TV System:  NTSC
  • Effective Pixels:  NTSC: 510 x 492 pixels
  • Horizontal Resolution:  420 TV Line
  • Lens Angle:  120 Degree
  • IR Led:  No
  • Night Vision distance:  N/A
  • Operating Temperature:
  •  -20~+70 degree,RH95% Max
  • Lens:  f=2.5mm
  • Power Supply:  DC12V
  • N.W:  350g
  • Standard cable length:  80cm
  • IP Rating:  IP69K
  • Built-in Microphone:  Yes

CAMERA FEATURES:

CAMERA PARAMETERS:
