MONITOR FEATURES:
LCD PARAMETERS:

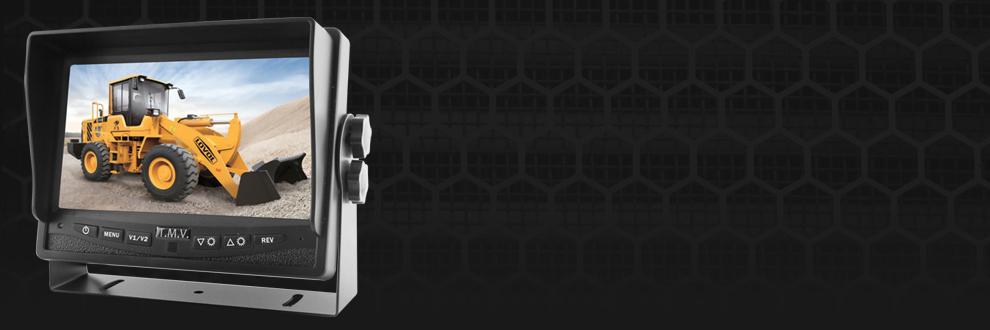

TMV-7LCD-LT
- New Design 7 Inch Digital color LCD monitor
- Shock resistant, specifically design for mobile use
- 3 camera inputs, power output from the monitor
- The priority of three triggers (for left, right and rear view)
- Front panel controls with on-screen menu
- Once a trigger wire is activated, image automatically switches to its relative camera
- Operates from 10~32V.
- The button on the monitor has blue light in dark automatically.
- Screen Size: 7”
- Picture display format: 16:9 / 4:3
- Resolution: 800 X 3 (RGB) X 480
- Contrast: 500: 1
- Dot pitch: 0.118 (W) X 0.362 (H)
- Brightness: 300cd/m2
- Power: <2W
- Current: 700mA
- Operation Temp.: -20 ˜ +70˚C
- Storage Temp.: -30 ˜ +85˚C
- Operating Power: Automatic NTST
- Language display: 8 Languages
- Size: 179.3 X 134.3 X 68.8mm
- Net weight: About 0.54Kg (including sun shield)
