• Rate operating range: 12V – 24V DC
  • Rate current: 100mA – 300mA
  • Power: 3.6W * Detecting distance: 0.3 – 3.0m (5m Customized)
  • Ultrasonic frequency: 40KHz
  • Control moudle working temperature: -30 – 80 celcius degree
  • Display working temperature: -30 – 70 celcius degree
  • Detecting angle: H >60°C, V > 60°C
  • Microphone sensitivity: -60db
  • LED display size: 78*19*30mm
  • Main control box size: 150*100*46mm

TMV-4PSKIT

Buzzer Alarm

PARKING SENSOR with

  • 4 sensor system, and advanced chipset for enhanced coverage and detection

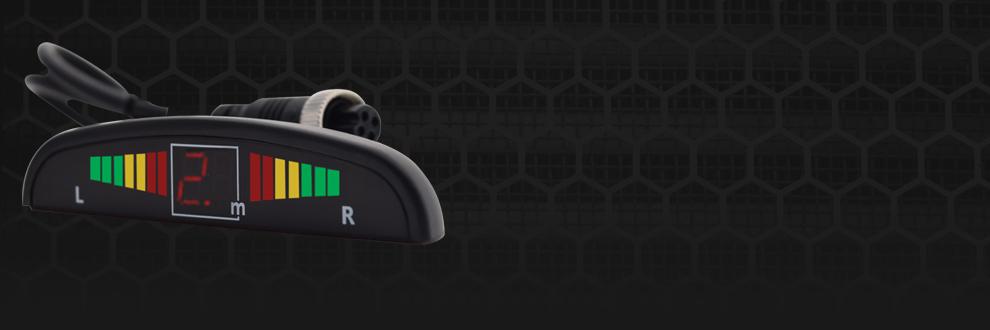

  • Digital colored LED display (number & light)
  • Prevent dangerous and costly collisions, enhance the safety features with simple installation
  • Increased safety for passengers, pedestrians and family members who happen to be around the moving vehicle
  • Adaptive environment technology
  • Anti-freeze and rain proof.
  • -Easy to install.

Sensor FEATURES:

951-413-1409

2220 Eastridge Ave. Suite O, Riverside Ca 92507

Rearview Reverse

SENSOR PARAMETERS:
