CAMERA PARAMETERS:

CAMERA FEATURES:

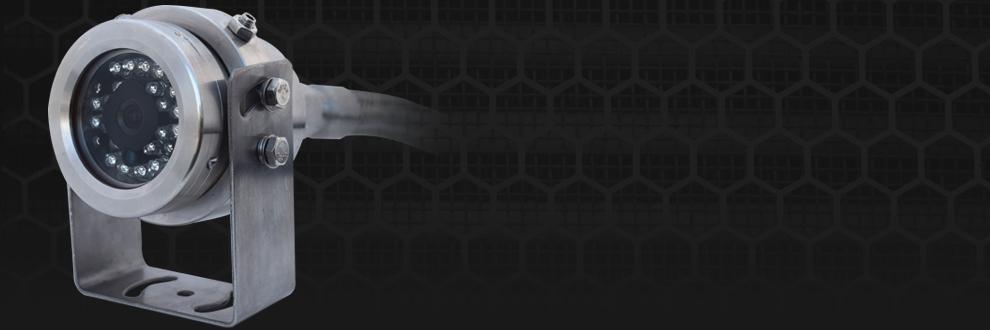

TMV-24EXPRCAM

STAINLESS STEEL

  • Anti-explosion Camera
  • 304 stainless steel molded in integral with polished finish
  • Anti-explosion, waterproof, dustproof, anti-shock, small size
  • Installation angle can adjustable
  • Built-in 15-meter infrared lamp for night
  • Mainly used in inflammable,explosive workplace and transport vehicles for inflammables
  • Image Device:  1/3” SONY  EXview HAD CCD II
  • TV System:   NTSC
  • Effective Pixels:  976(H)*582(V)  /  976(H)*494(V)
  • Sensing Area:   5.58mm×4.67mm
  • Scanning System:   2:1 Interlace
  • Sync. System:   Internal
  • Resolution:   700TV Lines
  • ATR:   YES
  • 2D noise reduction:   YES
  • OSD:   supports 8 Languages
  • Horizontal Sync Frequency:   15.625 kHz  /  15.734 kHz
  • Vertical Sync Frequency:   50 Hz  /  60 Hz
  • Video Output:   1.0Vp-p, 75Ohm
  • Gamma Consumption:    0.45
  • AGC:  Auto
  • S/N Ratio:   Better than 48dB
  • White Balance:   Auto
  • Electronic Shutter:   1/60(NTSC)/1/50(PAL)~1/100,000 Seconds
  • BLC:    Auto
  • Storage Temperature:   –50℃ ~ 95℃, RH95%MAX.
  • Operating Temperature:   –30℃~85℃
  • Minimum Illumination:   0 Lux
  • Power Supply:   DC12V
  • IR LED:    24pcs
  • Night vision distance:   8~10m
  • Anti-hazard classification:    Exd II CT6
  • Waterproof rating:   IP69K
  • Image mode:    Normal/Mirror
  • Viewing Angle:   92°/ 69°
  • Material quality:   304 Stainless steel

Explosion-proof CAMERA
