• Screen Size:   7”
  • Picture display format:   16:9 / 4:3
  • Resolution:   800 X 3 (RGB) X 480
  • Contrast:   500: 1
  • Dot pitch:   0.118 (W) X 0.362 (H)
  • Brightness:   300cd/m2
  • Power:   <2W
  • Current:    700mA
  • Operation Temp.:    -20 ˜ +70˚C
  • Storage Temp.:    -30  ˜ +85˚C
  • Operating Power:    Automatic NTST
  • Language display:   8 Languages  ​
  • Size:   179.3 X 134.3 X 68.8mm
  • Net weight:   About 0.54Kg (including sun shield)

951-413-1409

2220 Eastridge Ave. Suite O, Riverside Ca 92507

MONITOR FEATURES:

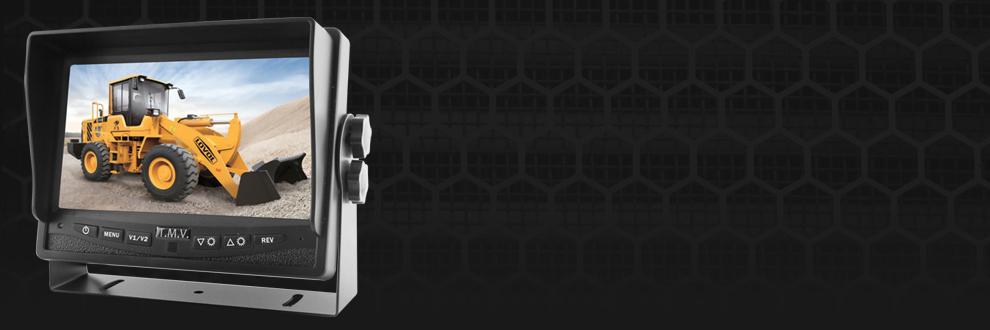

​​​7 inch LCD Monitor:

  • New Design 7 Inch Digital color  LCD monitor
  • Shock resistant, specifically design for  mobile use
  • 3 camera inputs, power output from the monitor
  • The priority of three triggers (for left, right and rear view)
  • Front panel controls with on-screen menu
  • Once a trigger wire is activated, image automatically switches to its relative camera
  • Operates from 10~32V.
  • The button on the monitor has blue light in dark automatically.

TMV-7LCD-LT

LCD PARAMETERS:
