MONITOR FEATURES:

LCD PARAMETERS:

TMV-Q7LCD-LT

  • 7 inch TFT LCD monitor,16:9
  • Wide view angle(CR>10): (up/down/left/right): 40/40/60/60 Degrees
  • Resolution:800 R.G.B x 480 dots
  • Color system: PAL/NTSC (selectable)
  • Power requirement: 12-32V DC
  • Power consumption: less than 5W
  • Operating temperature: -10 to +65 C-degree
  • Storage temperature: -30 to +80 C-degree
  • Dimension: 183 (L) x 125 (W) x 38 (D)
  • IP Rate: IP69k
  • Weight Approx: 1800g
  • Waterproof, IP69K
  • Full aluminum alloy housing, Heavy duty
  • Support two camera inputs
  • With remote controller
  • Single View
  • 7 languages OSD display
  • PAL/NTSC optional, MIRROR/NORMAL image optional
  • Automatically turn on when the reversing gear is engaged
  • With high-low voltage protection and short circuit protection

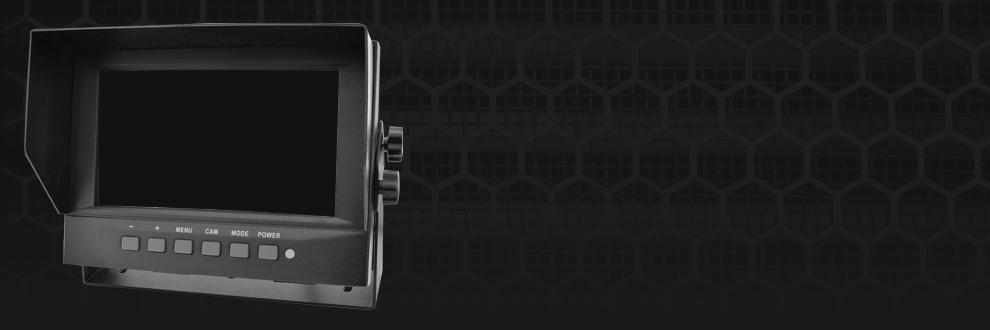

Digital LCD Monitor

951-413-1409

2220 Eastridge Ave. Suite O, Riverside Ca 92507

7 inch Waterproof IP69K
