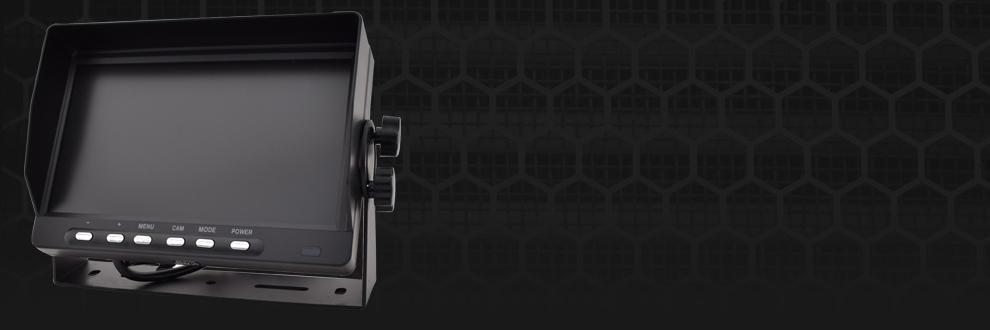

TMV-7STLCD-LT

Digital LCD Monitor

951-413-1409

2220 Eastridge Ave. Suite O, Riverside Ca 92507
  • Display Screen Size: 7 Inches ( DIGITAL)
  • Display Resolution: 800 x R.G.B x 480
  • Color System: PAL/NTSC AUTO
  • Aspect Ratio: 16 : 9
  • Video Input: 4 CHs Quad function
  • Trigger On Cables: CAM1,CAM2,CAM3,CAM4
  • Brightness: 400(CD/M2)
  • Contrast Ratio: 500 : 1
  • View Angle: U: 50°/ D: 60°, R/L: 70°
  • Power Voltage: 12~32VDC/ 300mA
  • Operation Temp.: -10℃ ~ +65 ℃
  • Weight Approx.: 400g
  • Speaker Built-In (Optional)
  • Video Interface: Phono RCA/4Pin Screw Plug (Optional)

MONITOR FEATURES:

  • Display with 4 video input (AV1, AV2,AV3,V4) Automatic
  • Trigger/manual switcher
  • Mirror/normal image set separate to each video
  • Multi-languages of display available: English, French, Chinese, Russian, Italian, Spanish, Portuguese, German and Arabian
  • Full function wireless remote control
  • Built-in Speaker (Optional)
  • Sector stand bracket/U Bracket
  • Sunshade
  • Especially designed for BUS, and vehicle use

LCD PARAMETERS:
